Description
The K-Tech ET98-DB Line Loss Display Board is designed for use with the ET98A Line Loss Indicator, providing connections for an external LED indicator, audible buzzer, and momentary-contact key-switch reset.

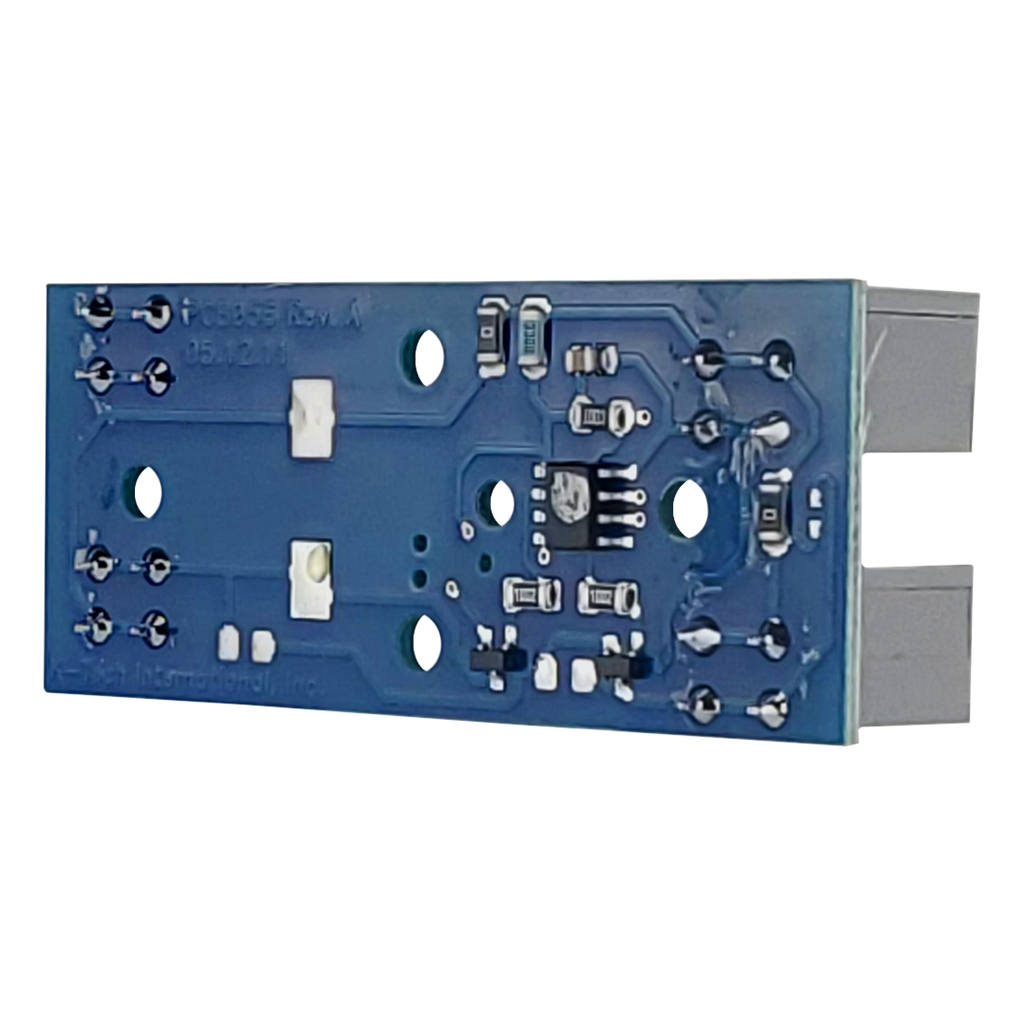

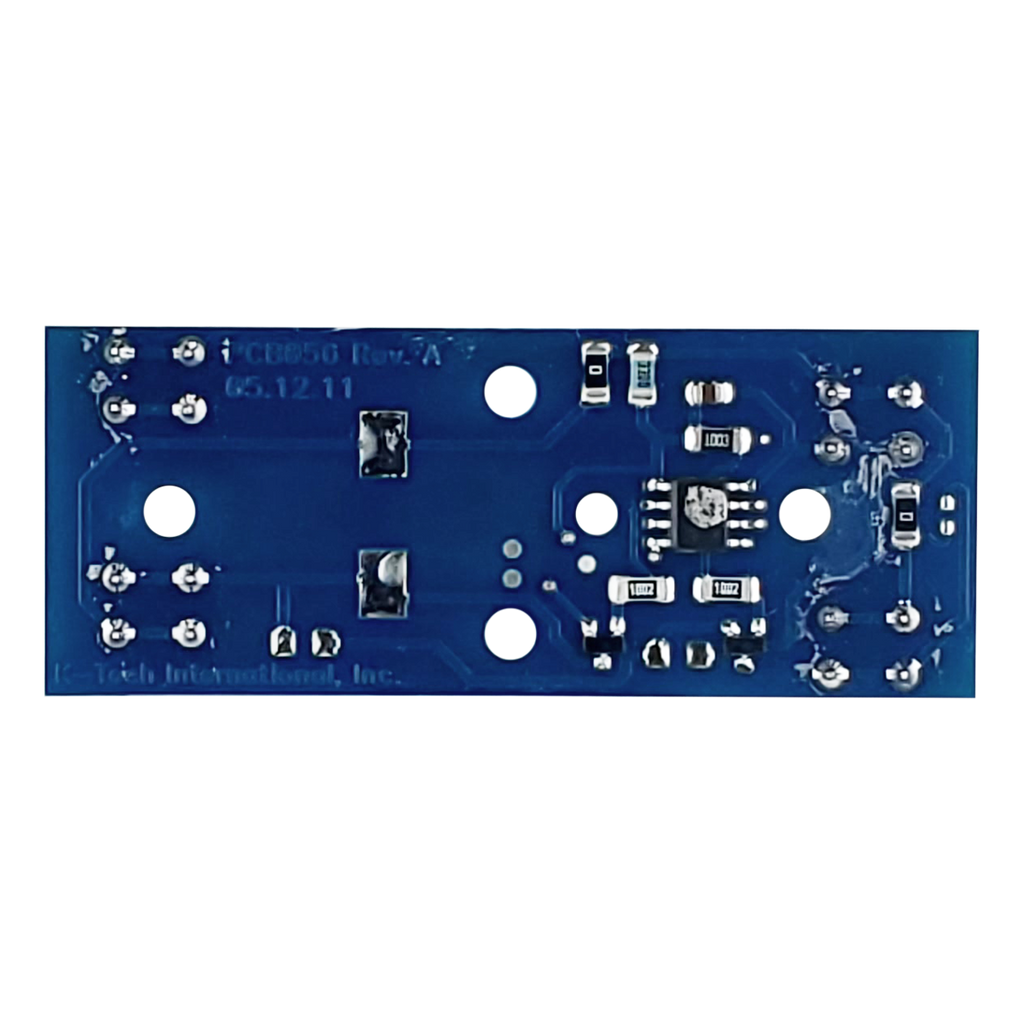

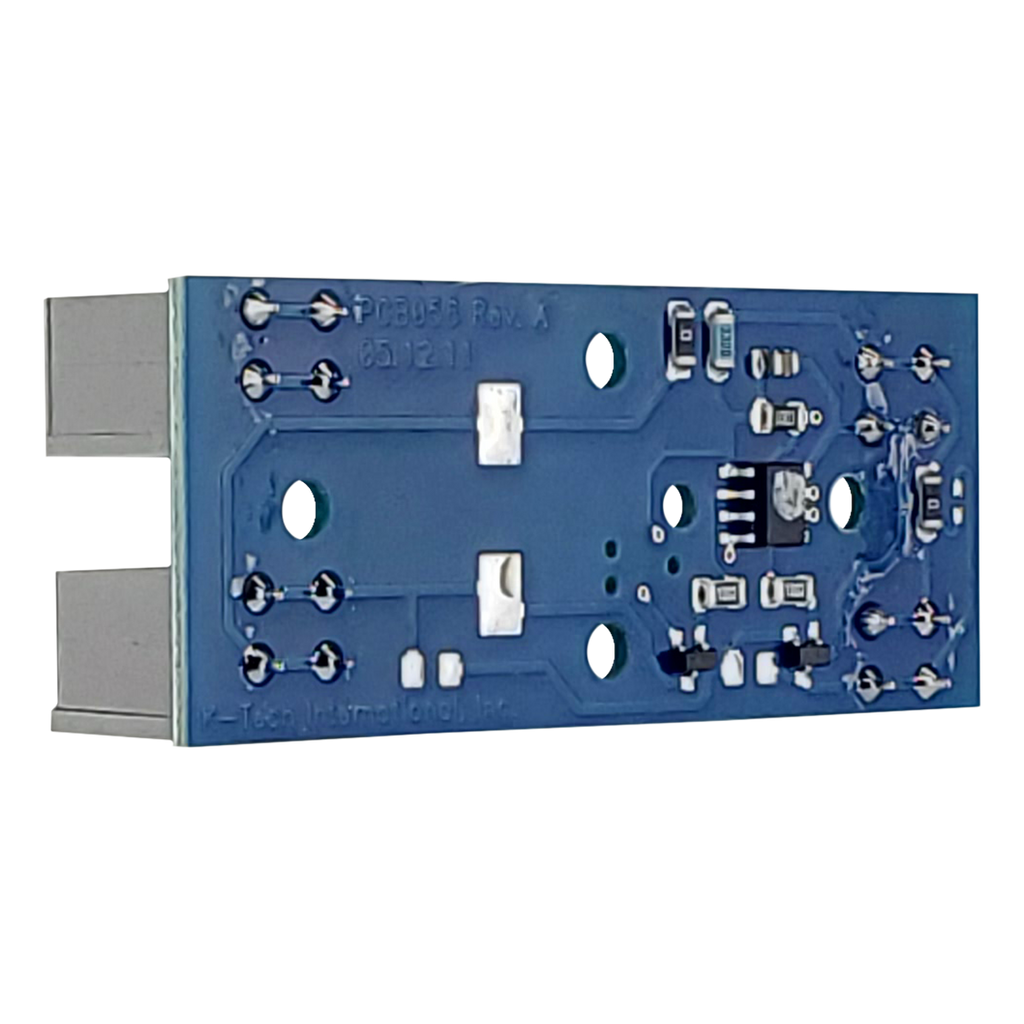

Ideal for custom line-loss display installations or replacement applications, the compact circuit board features terminal-block connections and can be installed using the included adhesive mounting pads or stud mounting.
Features:
-
Compatible with K-Tech's ET98A Line Loss Indicator.
-
Supports external visual and audible line-loss alerts.
-

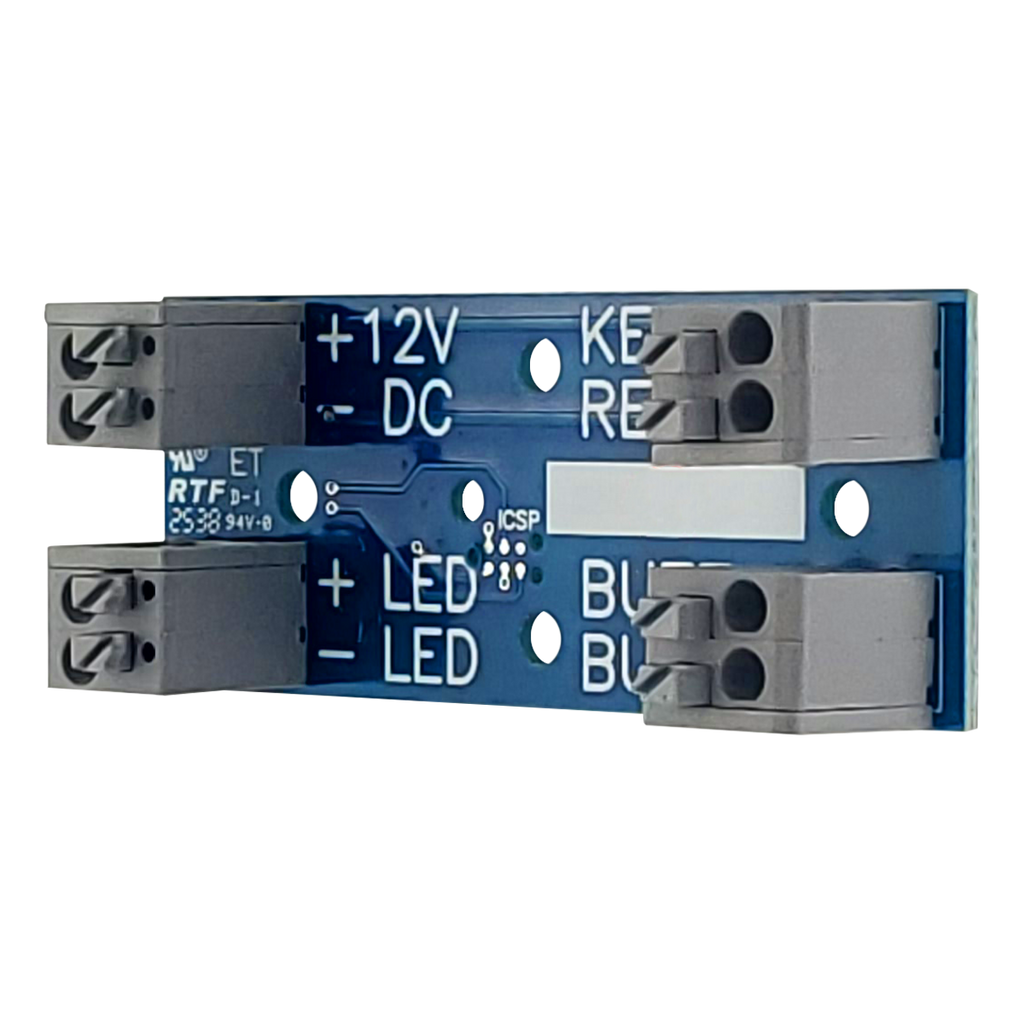

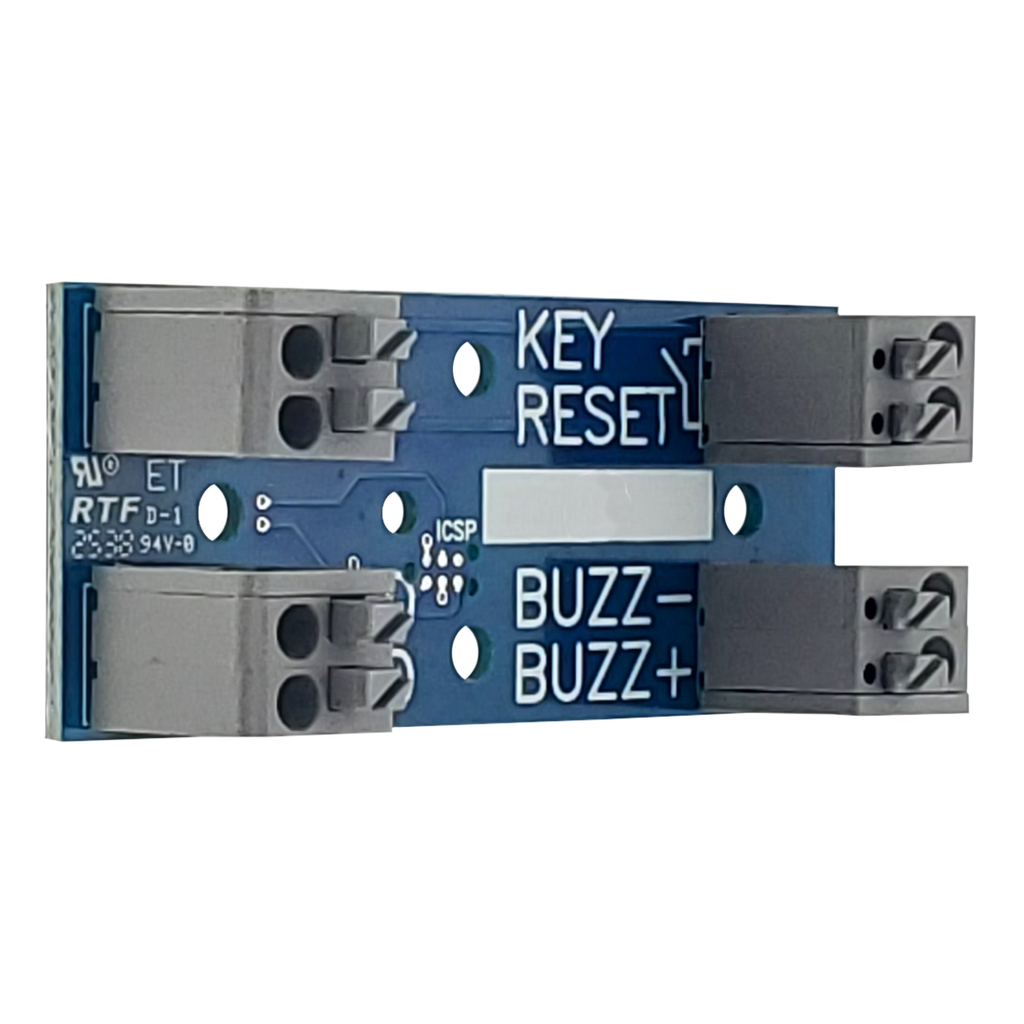

Connections for LED indicator, buzzer, and key-switch reset.
-
Supports a 12 VDC LED indicator.
-
Momentary-contact key-switch reset interface.
-
Compact design with adhesive pad or stud mounting options.
-

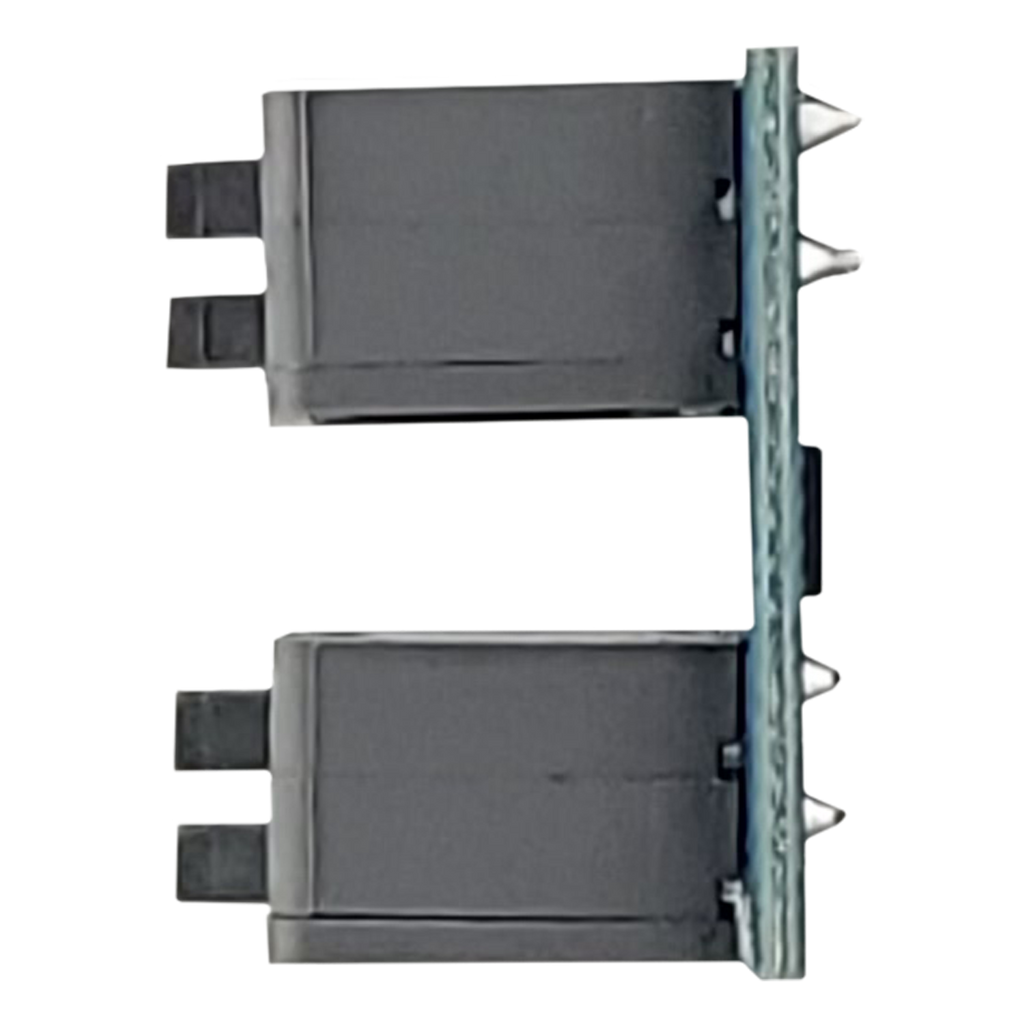

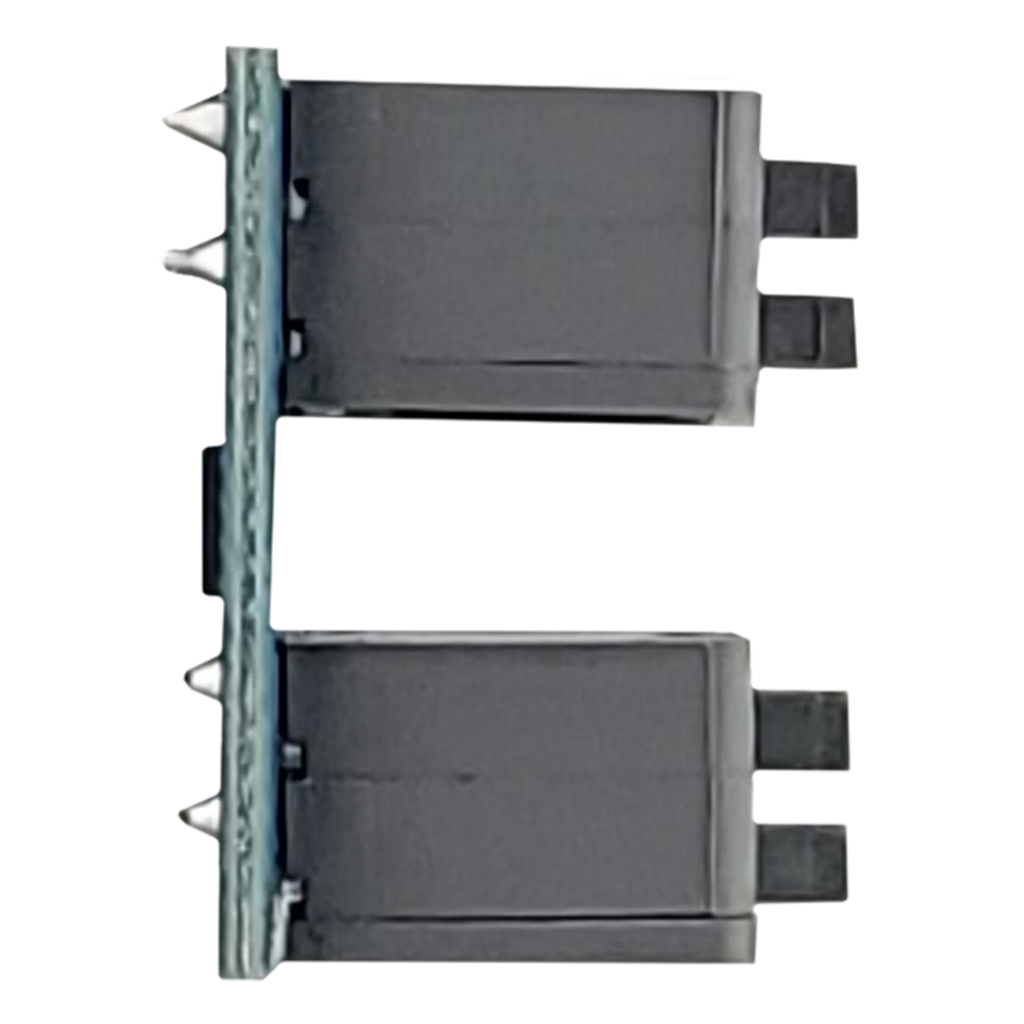

Terminal-block wiring connections.
Product Note:
The ET98-DB is already included with the ET98-LD Line Loss Lobby Display and does not need to be purchased separately when ordering the complete display.
For custom installations or replacement applications, the ET98-DB is available separately. External LED, buzzer, and key-switch are not included with the standalone board.
